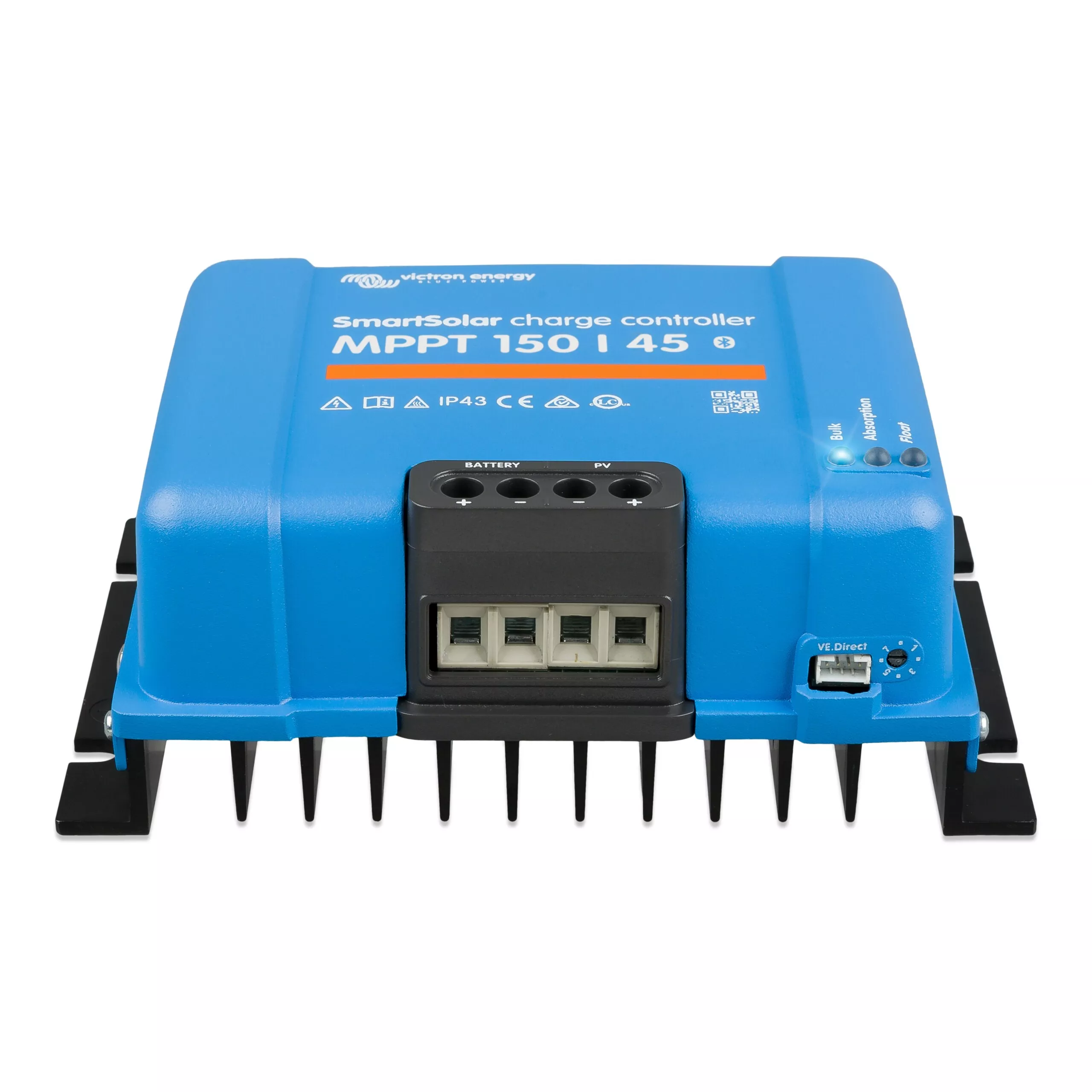

The Victron Energy SmartSolar MPPT 150/45 Solar Charge Controller (SCC115045212) from Nomadic Supply Company® features built-in Bluetooth connectivity combined with advanced MPPT technology for maximum solar power optimization. Designed for 12V, 24V, 36V, and 48V systems, this intelligent charge controller enables remote monitoring and setup via the VictronConnect smartphone application. Up to 45A charging output with 150V solar input makes it suitable for medium to large off-grid systems.
Victron Energy SmartSolar MPPT 150/45 Solar Charge Controller (SCC115045212) Features:
- Built-in Bluetooth with VictronConnect app integration
- Advanced MPPT tracking for maximum power harvesting
- Multi-voltage support: 12V, 24V, 36V, 48V
- 45A maximum charging current
- 150V solar input voltage
- Remote setup and monitoring via smartphone
- Eight pre-programmed battery profiles
- Fully programmable charging algorithms
- Temperature-compensated charging
- PV short-circuit and reverse polarity protection
Victron Energy SmartSolar MPPT 150/45 Solar Charge Controller (SCC115045212) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 45A |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 50A |
| Nominal PV Power @ 12V | 650W |
| Nominal PV Power @ 24V | 1300W |
| Nominal PV Power @ 36V | 1950W |
| Nominal PV Power @ 48V | 2600W |
| Maximum Efficiency | >98% |
| Connectivity | Bluetooth + VE.Direct |
| Operating Temperature Range | -40°C to 60°C |
Victron Energy SmartSolar MPPT 150/45 Solar Charge Controller (SCC115045212) Documents:
Victron Energy SmartSolar MPPT 150/45 Solar Charge Controller (SCC115045212) Owner’s Manual
