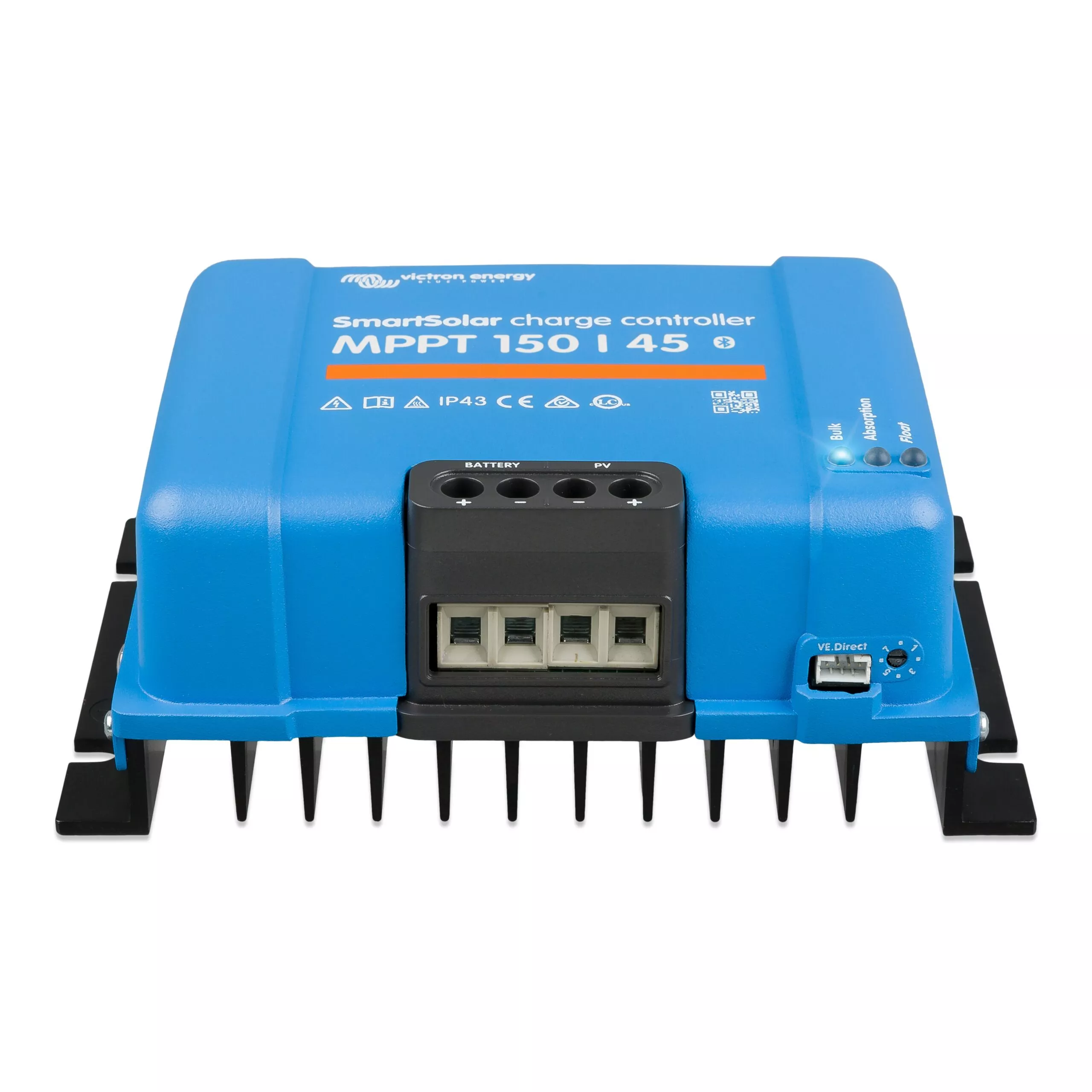

The Victron Energy SmartSolar MPPT 150 45A MC4 Charge Controller (SCC115045310) from Nomadic Supply Company® combines mid-range charging capacity with MC4 connectors and intelligent Bluetooth connectivity. With 45A output and 150V input, this smart controller is perfect for 12V-48V systems requiring wireless remote monitoring. MC4 standard ensures compatibility with modern solar arrays.
Victron Energy SmartSolar MPPT 150 45A MC4 Charge Controller (SCC115045310) Features:
- Built-in Bluetooth with VictronConnect control
- Advanced MPPT tracking technology
- MC4 solar connectors for compatibility
- 45A maximum charging current
- 150V solar input voltage
- Multi-voltage operation: 12V, 24V, 36V, 48V
- Remote smartphone monitoring and setup
- Eight selectable battery profiles
- Fully customizable charge algorithms
- Temperature-compensated charging
Victron Energy SmartSolar MPPT 150 45A MC4 Charge Controller (SCC115045310) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 45A |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 50A |
| Nominal PV Power @ 12V | 650W |
| Nominal PV Power @ 24V | 1300W |
| Nominal PV Power @ 36V | 1950W |
| Nominal PV Power @ 48V | 2600W |
| Connector Type | MC4 |
| Connectivity | Bluetooth + VE.Direct |
| Maximum Efficiency | >98% |
Victron Energy SmartSolar MPPT 150 45A MC4 Charge Controller (SCC115045310) Documents:
Victron Energy SmartSolar MPPT 150 45A MC4 Charge Controller (SCC115045310) Owner’s Manual
