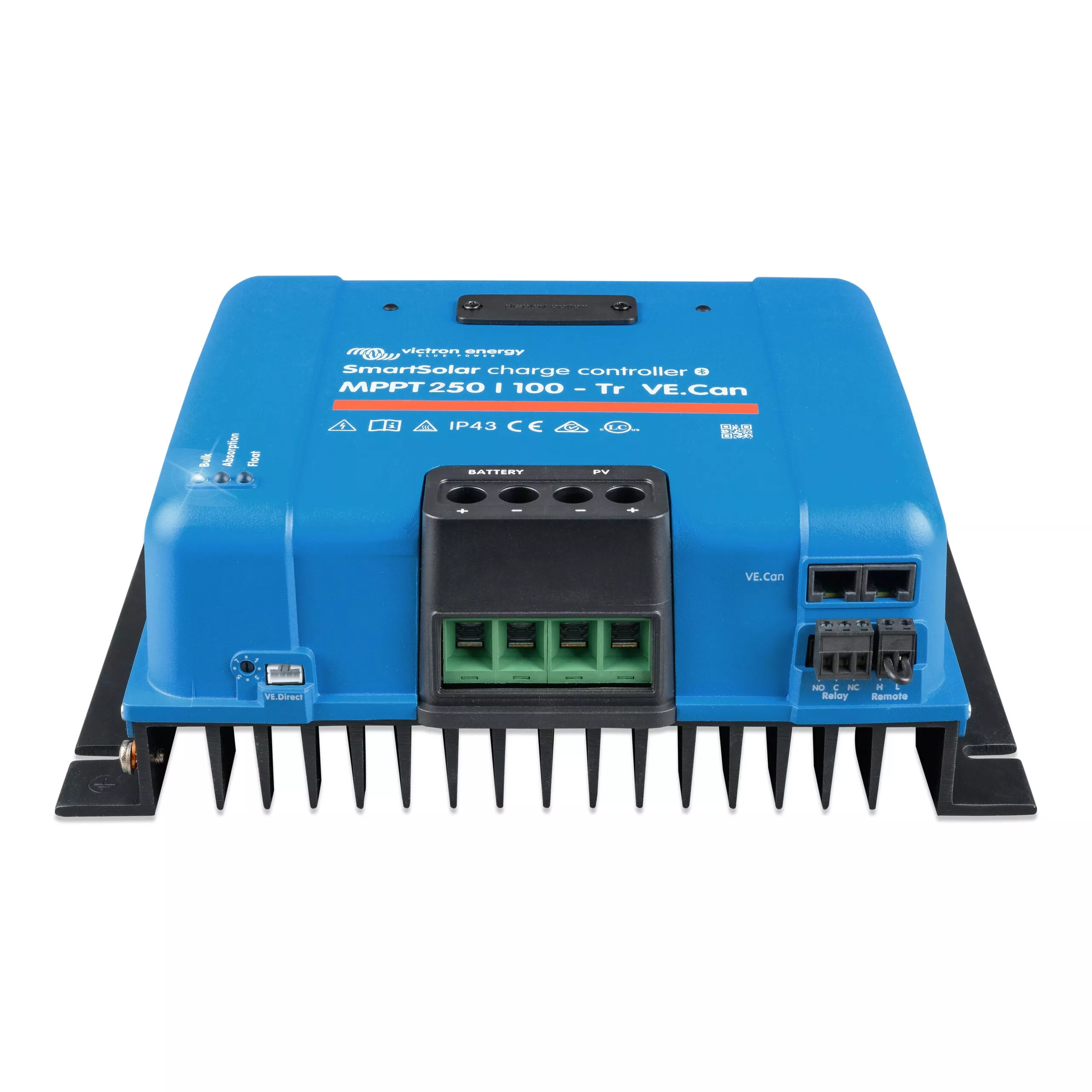

The Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can Solar Charge Controller (SCC125110512) from Nomadic Supply Company® is an intelligent ultra-high-capacity charge controller for the most demanding solar installations. Supporting 100A output at 250V input with MC4 connectors and VE.Can networking, this smart controller manages complex multi-array systems. Built-in Bluetooth provides wireless monitoring.
Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can Charge Controller (SCC125110512) Features:
- Built-in Bluetooth with VictronConnect app
- VE.Can networking for multi-unit systems
- MC4 solar connectors for compatibility
- 100A maximum charging current
- 250V solar input voltage
- Multi-voltage support: 12V, 24V, 36V, 48V
- Synchronize up to 25 units via VE.Can
- Remote monitoring and configuration
- Eight pre-programmed battery profiles
- Temperature-compensated charging
Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can Charge Controller (SCC125110512) Specifications:
| Battery Voltage | 12V / 24V / 48V Auto Select |
| Rated Charge Current | 100A |
| Maximum PV Voltage | 250V |
| Maximum PV Short Circuit Current | 70A per MC4 connector |
| Nominal PV Power @ 12V | 1450W |
| Nominal PV Power @ 24V | 2900W |
| Nominal PV Power @ 36V | 4350W |
| Nominal PV Power @ 48V | 5800W |
| Connector Type | MC4 |
| Communication | VE.Can + Bluetooth |
| Maximum Efficiency | >98% |
Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can Charge Controller (SCC125110512) Documents:
Victron Energy SmartSolar MPPT 250/100-MC4 VE.Can Solar Charge Controller (SCC125110512) Owner’s Manual
