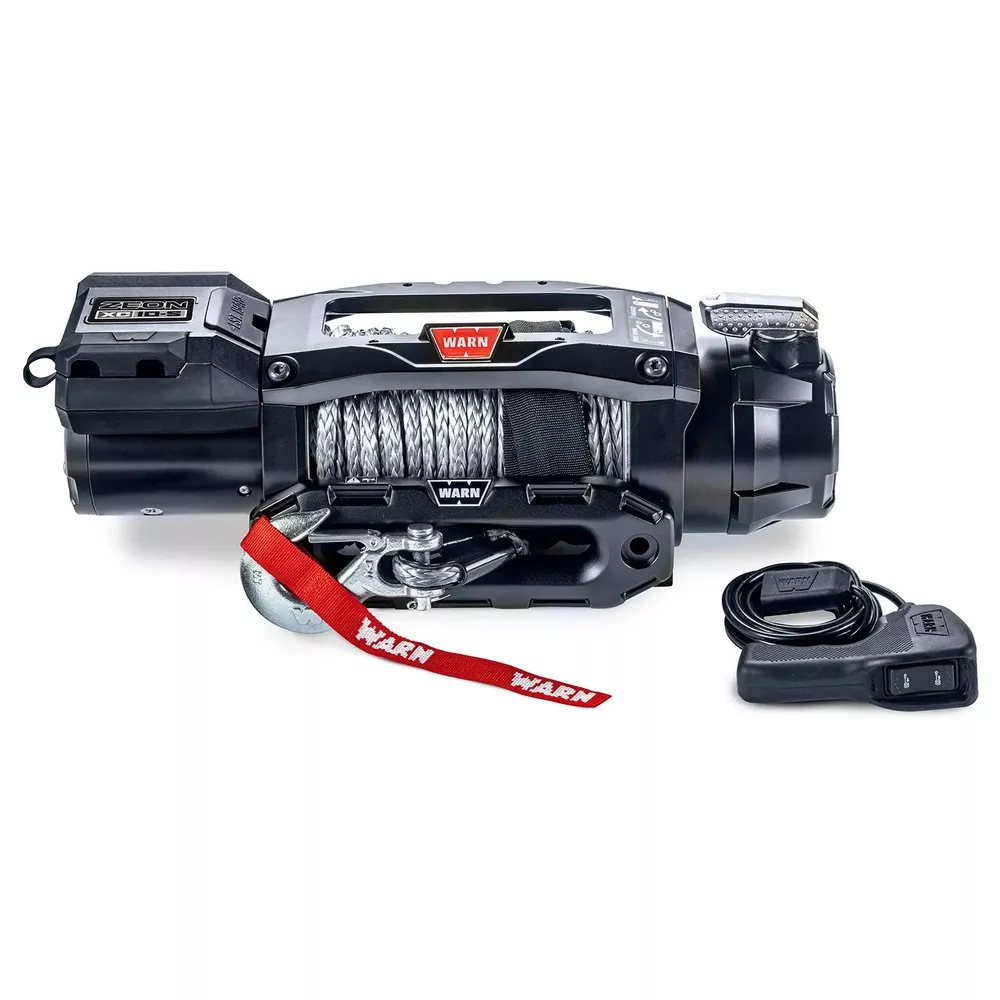

The Warn ZEON XC 10-S 10,000 lb. Spydura Pro Synthetic Rope Winch (110510) from Nomadic Supply Company® delivers best-in-class line speed and a 10,000 lb. rated pull capacity in a compact, low-profile package built for the tightest mounting applications. Designed, engineered, and assembled in the USA, the Warn ZEON XC 10-S pairs OEM-grade construction with an industry-leading warranty to keep you pulling through the most demanding recoveries for years to come.
The Warn ZEON XC 10-S 10,000 lb. Spydura Pro Synthetic Rope Winch stands out through its fully waterproof IP68 and IP69K dual ratings, achieved using automotive-grade O-ring seals that protect every critical component from submersion and high-pressure spray alike. Whether you are crossing a flooded trail or working in relentless rain, the Warn ZEON XC 10-S is engineered to perform without hesitation.
Paired with 100 feet of lightweight 3/8″ Spydura Pro synthetic rope and a large-radius black Epic aluminum hawse fairlead, the Warn ZEON XC 10-S offers a safer, easier-to-handle rigging solution compared to traditional steel cable. Its three-stage planetary gear system at a 141:1 ratio works alongside a series-wound 12-volt motor to deliver the pulling force and speed serious off-roaders demand, while the automatic cone brake and free-spooling capability give you confident, precise control in every recovery situation.
Warn ZEON XC 10-S 10,000 lb. Spydura Pro Synthetic Rope Winch (110510) Features:
- Compact, Low Profile Design: The entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications.
- Relocatable Remote Socket: The remote socket can easily be relocated within 9″ of the control pack for added mounting versatility.
- Ultimate Performance and Durability: Best-in-class line speed, superior durability, and highest pulling capacity combine to deliver exceptional recovery performance.
- Fully Waterproof: IP68 submersion and IP69K spray ratings are achieved through the use of automotive-grade O-ring seals, protecting the winch in the harshest wet conditions.
- OEM Grade Corrosion Resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring the ZEON XC stays pristine for years to come.
- Spydura Pro Synthetic Rope and Epic Hawse Fairlead: Includes 100′ of lightweight, easy-to-handle 3/8″ Spydura synthetic rope and a large-radius black Epic aluminum hawse fairlead.
- Industry-Leading Warranty: Limited lifetime mechanical coverage and a seven-year electrical warranty, all backed by a global service network.
- Designed, Engineered, and Assembled in the USA: The Warn ZEON XC 10-S is proudly designed, engineered, and assembled in the United States.
Warn ZEON XC 10-S 10,000 lb. Spydura Pro Synthetic Rope Winch (110510) Specifications:
- Brake Activation: Automatic
- Brake Type: Cone
- Cable Diameter: 0.375 in.
- Cable Length: 100 ft.
- Cable Material: Synthetic Rope
- D Shackle Included: No
- Fairlead Type: Hawse
- Free Spooling: Yes
- Gear Ratio: 141:1
- Gearing: 3-Stage Planetary
- Hand Saver: Yes
- Length: 22 in.
- Maximum Height: 7.8 in.
- Maximum Width: 6.7 in.
- Motor Type: Series Wound
- Motor Voltage: 12V
- Mounting Bolt Pattern Length: 4.5 in.
- Mounting Bolt Pattern Width: 10 in.
- Mounting Hole Quantity: 4
- Power Out: Yes
- Rated Line Pull: 10,000 lb.
- Remote Included: Yes
- Remote Type: Wire
- Solenoid Type: Yes
- Type: Electric
- Voltage: 12V
