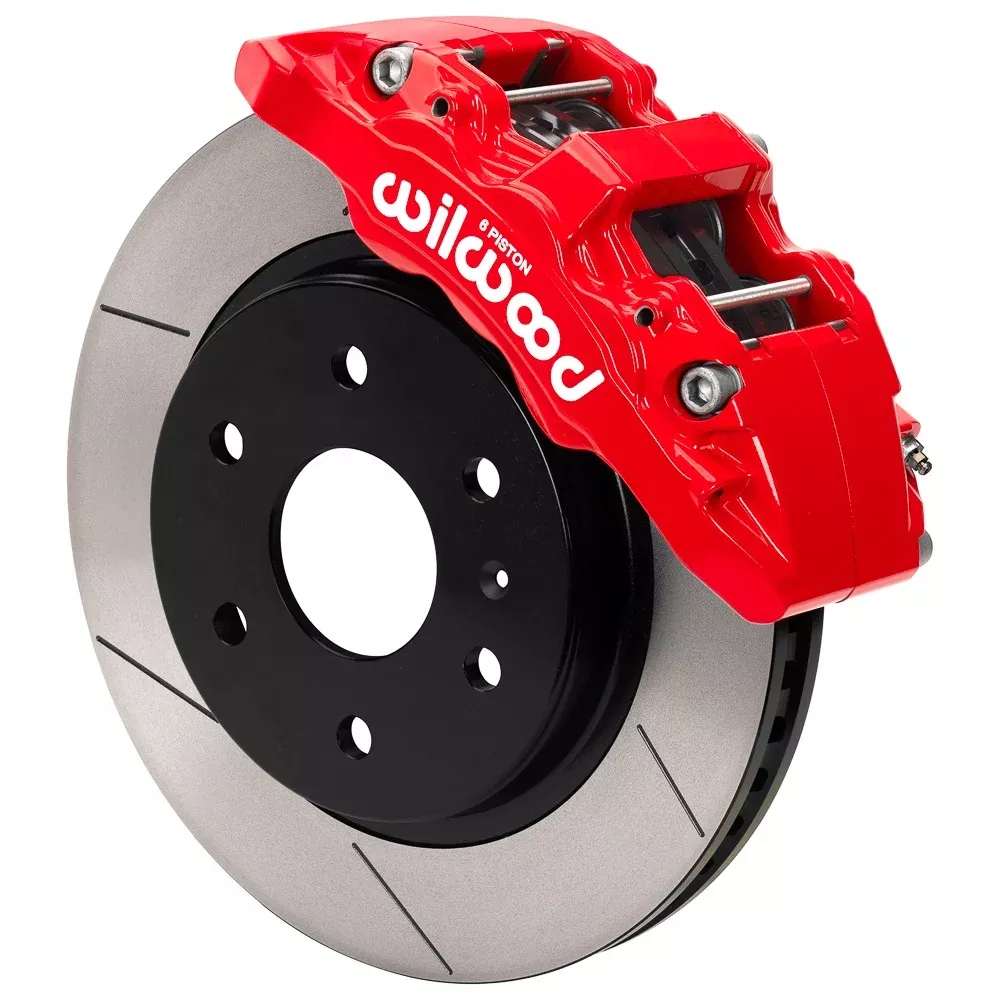

The Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) from Nomadic Supply Company® provides more holding power, easier modulation at low speeds, and greater thermal capacity for all types of high-demand highway and off-road applications, including towing and commercial use.
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) will fit most 17” and larger wheels. The Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) is designed to be fully compatible with factory front and rear brake mounting positions, master cylinders, and ABS computer systems.
(Note: a modification to the OE brake line chassis bracket hole diameter is required.)
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) Features:
- Directly mounts to factory spindles and hubs, front and rear, without the need for additional brackets
- Provides greater brake torque and increased thermal stability, yet fits behind most 17” and larger wheels
CALIPERS: AERO6-DM, AERO4-DM Stress-flow forged aluminum Aerolite calipers are engineered for direct mounting using Aero6-DM six piston (differential bore) calipers up front and Aero4-DM four piston calipers in the rear Compatible with the factory master cylinder, ABS and all electronic controls Calipers available in gloss black or red powder coat, or 26 additional color options (additional charges may apply)
ROTORS: GTB 13.25” diameter one-piece premium-grade iron alloy for heavy-duty use with protective black E-coating throughout GTB asymmetrically slotted face pattern with 48 vanes for efficient cooling BRAKE PADS: BP-Q BP-Q ceramic-based, dual-sport brake pad for everyday street or performance driving (additional compounds available)
INSTALLATION PARTS: Stainless steel Flexlines and premium-grade hardware included
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) Specifications:
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 – Black Powder Coat |
| Rotor Diameter: | 13.25 |
| Min Wheel Diameter Required: | 17 |
| *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check if it will fit your specific wheel. | |
| Calipers | |
|---|---|
| Left Hand – Part No: | 120-17953-RD |
| Right Hand – Part No: | 120-17952-RD |
| Type: | AERODM |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-Q |
| Rotors | |
|---|---|
| Left Hand – Part No: | 160-17898-GTB |
| Right Hand – Part No: | 160-17898-GTB |
| Type: | GTB Vented Rotor & Hat |
| Style: | GT Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 13.25 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | GT-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) Documents:
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) Owner’s Manual
Wilwood AERO-DM Front Disc Brake Kit for 2019+ Mercedes Sprinter Vans (Red) (140-17955-R) Brochure
