SKU: 261-16796-BK | UPC: 889545105698

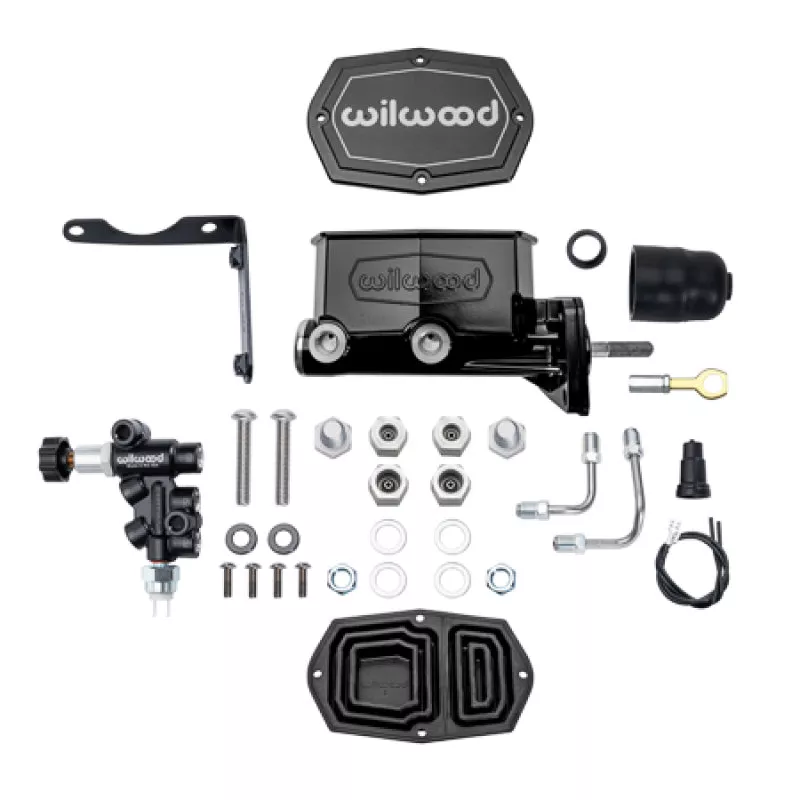

Wilwood Mopar Compact Tandem Master Cylinder Kit w/ Combination Valve & Pushrod 15/16in Bore – Black 1962-1974 B/E Body
This Wilwood Compact Tandem Master Cylinder Kit delivers reliable hydraulic pressure for 1962-1974 Mopar B and E-Body vehicles including Dodge Charger Coronet Challenger and Plymouth Road Runner Cuda. The 15/16 inch bore provides 1.60 cubic inches front stroke volume and 1.12 cubic inches rear for responsive braking. Black anodized finish resists corrosion while matching OEM mounting footprint for easy upgrades on drum or disc systems.
Key Features
- 15/16 inch Bore Size: Balances front rear hydraulic ratios with 1.767 square inch foot area 0.693 square inch front 1.074 square inch rear for consistent pressure
- Compact Tandem Design: Direct replacement for OEM compact master cylinders on Mopar B/E bodies with 7.00 square inch reservoir capacity
- Included Combination Proportioning Valve: Adjustable bias for front rear brake balance improves stopping power on street or track
- Adjustable Pushrod: Custom lengths with eye or clevis ends ensure proper firewall mounting and pedal ratio
- Black Anodized Aluminum: Lightweight at 3.60 pounds with durable finish protects against road salt and brake fluid exposure
Product Notes
- Verify firewall mounting holes match OEM 3-3/8 inch spacing before install
- Flush system with DOT 3 or 4 fluid after installation to remove air and contaminants
- Ships fully assembled ready for bolt-on application
Installation Notes
- Professional installation recommended.
- Bleed brakes in specific sequence front rear to eliminate trapped air
- Compatible with Wilwood calipers and OEM Mopar drums discs using 3/16 inch lines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1962-1974 | Dodge | Charger | All |
| 1962-1974 | Dodge | Coronet | All |
| 1970-1974 | Dodge | Challenger | All |
| 1964-1974 | Plymouth | Barracuda | All |
| 1962-1974 | Plymouth | Belvedere | All |
| 1970-1974 | Plymouth | Cuda | All |
| 1968-1974 | Plymouth | Road Runner | All |
| 1962-1974 | Plymouth | Satellite | All |
Why Choose Wilwood?
- Engineered for Mopar muscle cars with dyno-tested components
- Aluminum construction reduces unsprung weight improves heat dissipation
- Precision-machined bores ensure leak-free operation over 100000 miles
Frequently Asked Questions
- Q: Will this fit my 1972 Dodge Charger with factory disc brakes?
A: Yes it bolts directly to the firewall using OEM holes and works with factory 11 inch discs or Wilwood upgrades - Q: What material is the body made from?
A: High-strength aluminum with black anodize finish for corrosion resistance and lightweight 3.60 pound design - Q: Does it come with a warranty?
A: Backed by Wilwood one-year limited warranty against defects in materials workmanship
